Your location: Home > Product > CNC Foil winding machine > Stereoscopic triangle roll core winding machine JTR
Product

Product

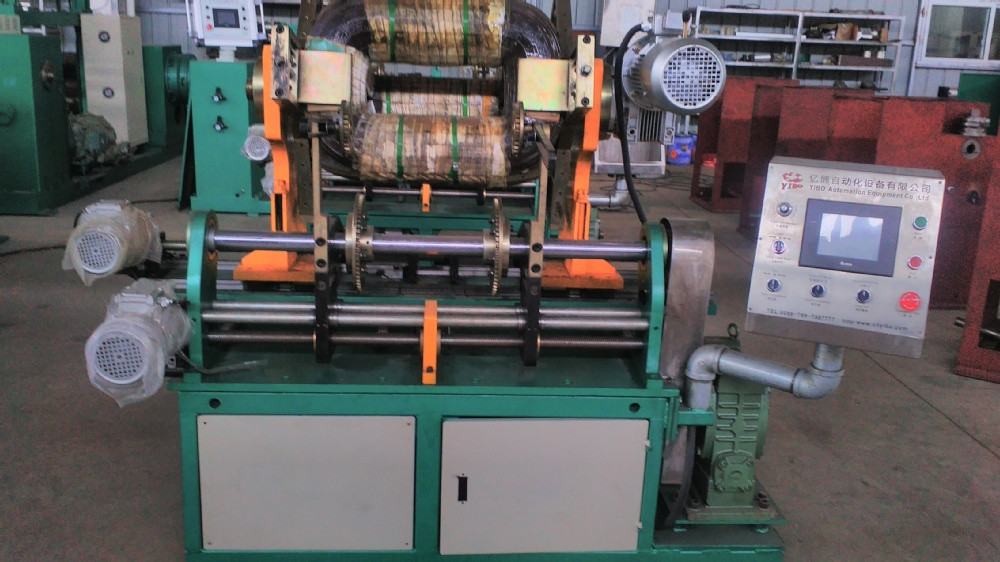

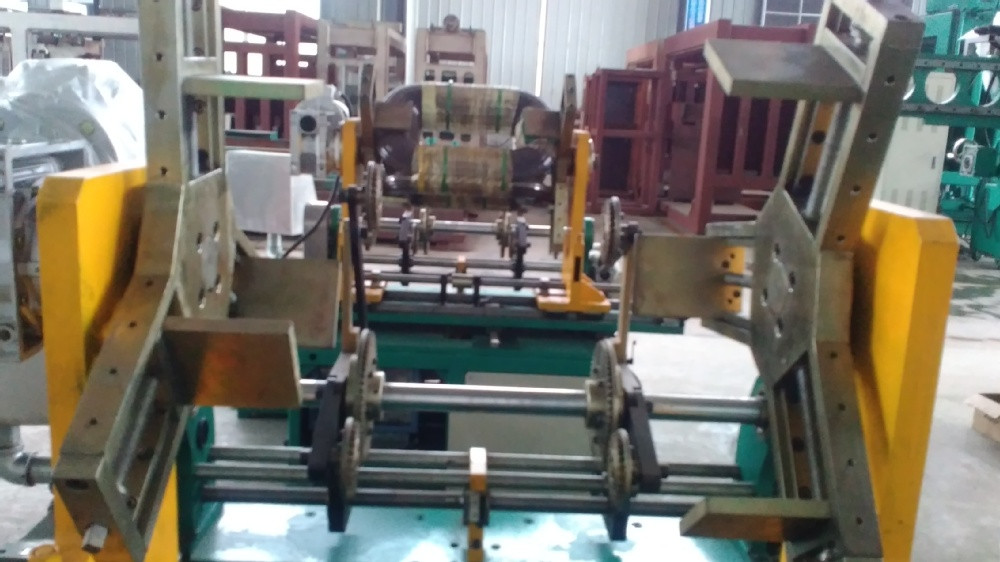

Stereoscopic triangle roll core winding machine JTR

Three-dimensional triangle wound core transformer machines is for tirangle roll core winding and triangle foil winding, can winding S11, S12, S13 etc transformer stereo triangle core coil. Stereoscopic triangle roll core winding machine has reasonable design, simple structure, keep core in the middle, clamp and locate easier, winding center height is adjustable, high and low voltage coil winding once completed. Frequency control of motor speed, smooth transmission, low noise, counting encoder, good braking performance, high quality and reliable.

SPECIFICATIONS FOR CORE TRANSFORMER MACHINES
Transformer specifications 30-1600KVA Winding way Horizontal
Three column center distance 820mm Max outer diameter 820mm
Winding center distance is adjustable 250mm Bear weight of workable 2000KGS
Spindle speed 0-250r/pm Control range Frequency converter speed control
Count mode Encoder counts 0.1 turns Total motor power 4.5KW
Winding power 3KW Rotate core motor power 1.1KW
Workbench shift range 200mm Weight About 1200KGS
